技嘉 GB-BTIP-N150(N150/FUD)
- ★ 注意事項:特仕機商品為客製化商品，工程人員將會拆封做配件安裝及開機檢測動作，可接受者方可下單
- ★ 處 理 器：Intel Processor N150
- ★ 記 憶 體：無
- ★ 硬 碟：無
- ★ 顯 示 卡：Intel Graphics
- ★ 網 路：Realtek RTL8111H
- ★ 無線網路：Wi-Fi 5 + Bluetooth 5.0
- ★ 作業系統：無
![信用卡付款 [一次付清]](data/payment/icon/1504051052549043192.png){kind=icon}
| 體積尺寸 | 113 mm x 116.52 mm x 56.22 mm |
| 主機板尺寸 | 154 mm x 109 mm |
| 處理器 | Intel® Processor N150 4C, up to 3.6 GHz, 6W |
| 記憶體 | 1 x SO-DIMM DDR5 slot, support up to 4800MHz (Max. 16GB) |
| LAN | GbE LAN (Realtek® RTL8111H) |
| Wifi Card | AW-CB515NF Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0 |
| 繪圖晶片 | Intel® Graphics 24EUs 1 x HDMI v2.0, 4096x2160@60Hz 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz |
| Audio | Realtek® ALC897 |
| 儲存裝置 | 1 x 2.5'' slot for SATA HDD/SSD |
| 擴充插槽 | 1 x M.2 M Key 2280 slot (PCIe Gen 3x2) 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card) |

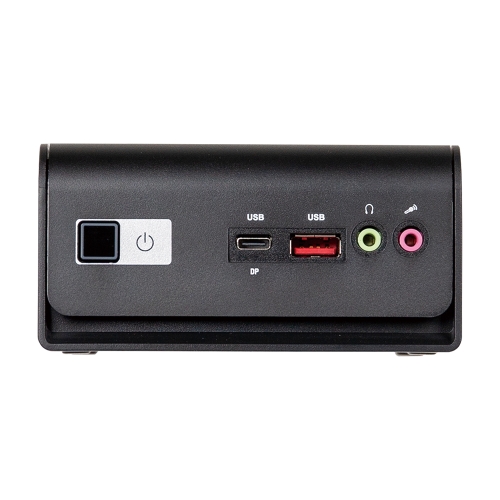

| 前置 I/O | 1 x Power button 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) 1 x Headphone 1 x Microphone |

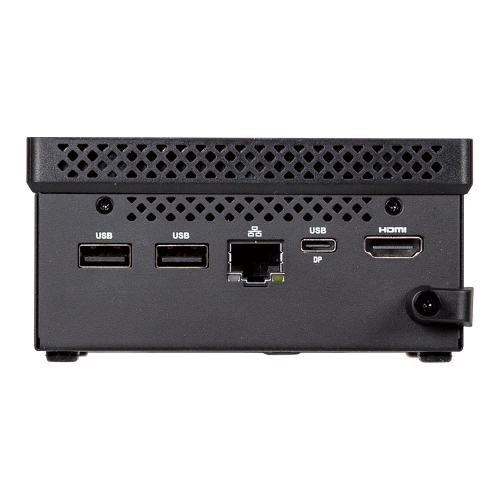

| 背板 I/O | 1 x HDMI 1 x RJ45 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) 1 x Wire Clamp Screw Hole |
| Left I/O | 1 x DC-In |
| Right I/O | 1 x Kensington lock slot |
| 電源供應 | Input: AC 100-240V Output: DC 19V / 3.42A, 65W |
| VESA 支援 | VESA support Supports 75 x 75 and 100 x 100 mm |
| Support OS | Windows 11 64bits |
| 備註 | 升級配件廠商提供1年保固服務 |
| 商品資訊若有誤植，以原廠公佈為主 | |
